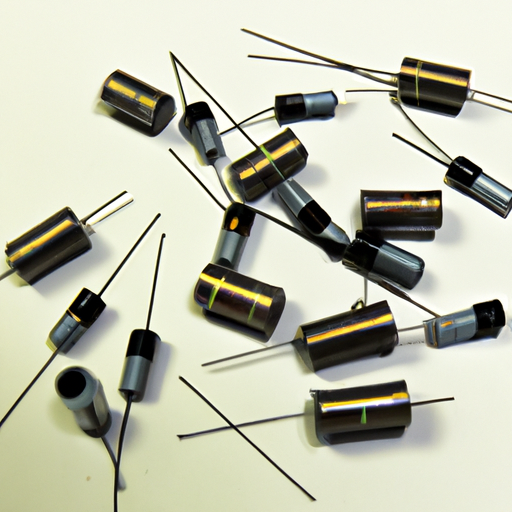

Capacitors are fundamental components in electronic circuits, serving as energy storage devices that play a crucial role in various applications. They store electrical energy temporarily and release it when needed, making them essential for smoothing out voltage fluctuations, filtering signals, and providing power in timing applications. This article aims to explore the popular capacitor models, their characteristics, applications, and the factors to consider when selecting the right capacitor for specific needs.
Capacitors operate on a simple principle: they store electrical energy in an electric field created between two conductive plates separated by an insulating material, known as a dielectric. When a voltage is applied across the plates, an electric charge accumulates, allowing the capacitor to store energy. The amount of charge a capacitor can hold is defined by its capacitance, measured in farads (F), which is a function of the surface area of the plates, the distance between them, and the properties of the dielectric material.
Capacitors can be categorized into two main types: polarized and non-polarized. Polarized capacitors, such as electrolytic capacitors, have a positive and negative terminal and must be connected in the correct orientation. Non-polarized capacitors, like ceramic and film capacitors, can be connected in either direction. Additionally, capacitors can be fixed, with a set capacitance value, or variable, allowing for adjustable capacitance.
**Description and Characteristics:**
Ceramic capacitors are made from ceramic materials and are widely used due to their small size and low cost. They are available in various capacitance values and voltage ratings, making them versatile for many applications.
**Applications:**
Commonly found in decoupling and filtering applications, ceramic capacitors are used in power supply circuits, audio equipment, and RF applications.
**Advantages and Disadvantages:**
Advantages include low equivalent series resistance (ESR), high stability, and reliability. However, they can have a limited capacitance range and may exhibit capacitance loss under DC bias.
**Description and Characteristics:**
Electrolytic capacitors are polarized capacitors that use an electrolyte as one of their plates. They offer high capacitance values in a relatively small package.
**Applications:**
These capacitors are commonly used in power supply circuits, audio amplifiers, and energy storage applications.
**Advantages and Disadvantages:**
The main advantage is their high capacitance-to-volume ratio. However, they have a limited lifespan, are sensitive to temperature and voltage, and can fail if connected incorrectly.
**Description and Characteristics:**
Tantalum capacitors are another type of polarized capacitor, known for their stability and reliability. They use tantalum metal for the anode and are available in small sizes with high capacitance values.
**Applications:**
Tantalum capacitors are often used in compact electronic devices, such as smartphones and laptops, as well as in military and aerospace applications.
**Advantages and Disadvantages:**
They offer excellent performance in terms of capacitance stability and low leakage current. However, they can be more expensive than other types and are sensitive to voltage spikes.
**Description and Characteristics:**
Film capacitors use a thin plastic film as the dielectric material. They are non-polarized and come in various types, including polyester, polypropylene, and polycarbonate.
**Applications:**
Film capacitors are used in audio equipment, power electronics, and timing circuits due to their stability and low distortion.
**Advantages and Disadvantages:**
They provide excellent performance, high insulation resistance, and long life. However, they can be bulkier than other types and may have lower capacitance values.
**Description and Characteristics:**
Supercapacitors, also known as ultracapacitors, have a much higher capacitance than traditional capacitors, allowing them to store significant amounts of energy.
**Applications:**
They are used in applications requiring rapid charge and discharge cycles, such as energy storage systems, regenerative braking in electric vehicles, and backup power supplies.
**Advantages and Disadvantages:**
Supercapacitors can charge and discharge quickly and have a long cycle life. However, they have lower energy density compared to batteries and are typically more expensive.
**Description and Characteristics:**
Mica capacitors use mica as the dielectric material and are known for their high stability and precision.
**Applications:**
They are often used in RF applications, oscillators, and timing circuits where accuracy is critical.
**Advantages and Disadvantages:**
Mica capacitors offer excellent temperature stability and low loss. However, they can be more expensive and larger than other types.
**Description and Characteristics:**
These capacitors use conductive polymers as the electrolyte, offering a combination of the benefits of electrolytic and tantalum capacitors.
**Applications:**
They are used in applications requiring high capacitance and low ESR, such as power supply circuits and portable electronics.
**Advantages and Disadvantages:**
They provide good performance and reliability but can be more expensive than traditional electrolytic capacitors.
**Description and Characteristics:**
High voltage capacitors are designed to operate at voltages significantly higher than standard capacitors, often exceeding 1 kV.
**Applications:**
They are used in power transmission, industrial equipment, and high-voltage power supplies.
**Description and Characteristics:**
RF capacitors are designed for high-frequency applications and have low ESR and ESL (equivalent series inductance).
**Applications:**
Commonly used in radio frequency circuits, antennas, and communication devices.
**Description and Characteristics:**
Power capacitors are used in power factor correction and energy storage applications, designed to handle high currents and voltages.
**Applications:**
They are found in industrial power systems, renewable energy systems, and motor drives.
When selecting a capacitor for a specific application, several factors must be considered:
The required capacitance value depends on the application, such as filtering, timing, or energy storage.
The voltage rating must exceed the maximum voltage the capacitor will experience in the circuit to prevent failure.
Capacitors have different temperature coefficients, affecting their performance in varying temperatures.
The physical size and shape of the capacitor can impact its suitability for specific applications, especially in compact devices.
Considerations such as ESR, ESL, and lifespan are crucial for ensuring optimal performance in the intended application.
The capacitor industry is evolving, with several trends shaping its future:
New materials are being developed to enhance performance, increase capacitance, and reduce size.
As electronic devices become smaller, the demand for compact capacitors that can be integrated into circuits is growing.
Sustainability is becoming increasingly important, leading to the development of eco-friendly capacitors and recycling initiatives.
In summary, capacitors are vital components in electronic circuits, with various models available to suit different applications. Understanding the characteristics, advantages, and disadvantages of popular capacitor models, such as ceramic, electrolytic, tantalum, and film capacitors, is essential for selecting the right component for specific needs. As technology advances, staying informed about trends in capacitor technology will help engineers and designers make better choices for their projects.
For further information on capacitors and their applications, consider exploring the following resources:
1. "Capacitors: Principles and Applications" by John Smith
2. "The Art of Electronics" by Paul Horowitz and Winfield Hill
3. Online resources such as educational websites, manufacturer datasheets, and electronics forums.
